Información Básica.
No. de Modelo.
6*25
tipo
eslinga de cable
material
acero
capacidad de elevación
>6t
tipo de núcleo de cuerda
núcleo de acero
forma
redondo
color de la eslinga
gris
estructura
6*25
núcleo
iwrc
tratamiento de la superficie
acero brillante/ungalvanizado
color
plata
factor de seguridad
5:1
capacidad de elevación(t)
0,65-19,6
muestra
gratis
resistencia a la tracción
1570-1960mpa
tiempo de entrega
15 días
Paquete de Transporte
in Wooden Carton/Gunny Bag
Marca Comercial
geyo
Origen
China
Código del HS
7312900000
Capacidad de Producción
1000PCS/Month
Descripción de Producto

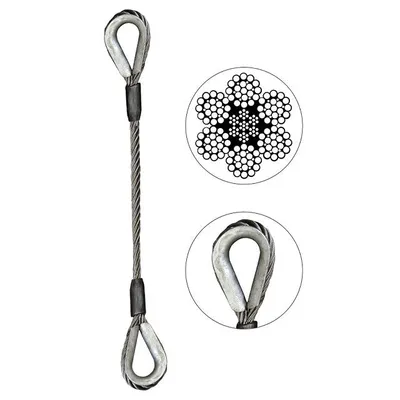

Thimble and thimble Ungalvanized 6*25 IWRC single leg wire rope sling(EIPS)
Our single leg thimble and thimble wire rope slings are an extremely versatile and strong sling due to the reinforcement of a thimble in each eye loop. Available in a range of diameters, they can be used in a choker, basket, or vertical hitch, and are often used in conjunction with anchor shackles.
Thimble and thimble wire slings are available in either a 6x25 or a 6x36 wire rope, and manufactured with Flemish eyes to offer superior efficiency.
Description
Versatile single leg sling design can be used in a range of hitches and angles. Manufactured with thimbles and mechanical Flemish eye splicing for superior strength and efficiency.
All of our single leg wire rope slings include a metal tag displaying capacity, care, and instruction.Manufactured with Crosby sleeves.
Thimbles add strength and abrasion-resistance, extending the working life of the sling. Call us about custom lengths or other hardware options.
Specification
With different ton when in 30° 45° 60°
How to Calculate the Length of a Wire Rope Sling?
Wire rope bridles are measured by the length of the sling leg only. The length of the oblong master and eye hooks should not be included in the overall measurement.
Our slings are available in a variety of lengths, but can also be customized to any length you need.
Sling Proof Testing Certificates
Proof testing certificates can be supplied with your order for a nominal fee and must be requested at the time of order. Proof tests are performed in the factory where the sling is pull tested to 2x the vertical rating and officially recorded as proof for governing bodies. During the standard manufacturing process, only random slings during a production run are tested for compliance; in order to provide proof testing certificates with your order, every sling must be pull tested at the time of manufacture.
All of our wire rope lifting slings are inspected, certified and tagged with metal tags displaying capacity, care, and instructions.
PRODUCTION
STORAGE
TRANSPORTATION
In ordering a wire rope sling be sure to give complete information including length,diameter,construction,lay,core.
Length:state the exact length desired.In ordering end fittings such as thimbles,links or hooks spliced in,give exact length from bearing to bearing or end rope,or submit a sketch with dimensions.
Diameter:the true diameter of a wire rope is the diameter of a circle which will enclose it.In using the caliper to determine the diameter,be careful to avoid measuring across the adjacent strands.
Construction:advice whether 6X19,6X37,7X19 or other.
Lay:state definitely whether regular(right hanad or left hand).or lang lay(right hanad or left hand)is required;if it is uncertain,consult with us.Standard practice is to furnish Right Hand Regular(ordinary)Lay.But if left hand Regular(ordinary)Lay is required for cable tool drilling or some other purpose,be sure to state.
Core:indicate whether fiber core(FC)or independent wire rope core is desired.
Our single leg thimble and thimble wire rope slings are an extremely versatile and strong sling due to the reinforcement of a thimble in each eye loop. Available in a range of diameters, they can be used in a choker, basket, or vertical hitch, and are often used in conjunction with anchor shackles.
Thimble and thimble wire slings are available in either a 6x25 or a 6x36 wire rope, and manufactured with Flemish eyes to offer superior efficiency.
Description
Versatile single leg sling design can be used in a range of hitches and angles. Manufactured with thimbles and mechanical Flemish eye splicing for superior strength and efficiency.
All of our single leg wire rope slings include a metal tag displaying capacity, care, and instruction.Manufactured with Crosby sleeves.
Thimbles add strength and abrasion-resistance, extending the working life of the sling. Call us about custom lengths or other hardware options.
Specification
| Diameter | Vertical | Choker | 90°Basket | Wire rope | Type |
| 1/4" | 0.65T | 0.48T | 1.3T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
| 3/8" | 1.4T | 1.1T | 2.9T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
| 1/2" | 2.5T | 1.9T | 5.0T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
| 5/8" | 3.9T | 2.9T | 7.8T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
| 3/4" | 5.6T | 4.1T | 11T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
| 7/8" | 7.6T | 5.6T | 15T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
| 1" | 9.8T | 6.3T | 19.6T | 6x25 Bright EIPS IWRC | Single Leg thimble and Thimble |
How to Calculate the Length of a Wire Rope Sling?
Wire rope bridles are measured by the length of the sling leg only. The length of the oblong master and eye hooks should not be included in the overall measurement.
Our slings are available in a variety of lengths, but can also be customized to any length you need.
Sling Proof Testing Certificates
Proof testing certificates can be supplied with your order for a nominal fee and must be requested at the time of order. Proof tests are performed in the factory where the sling is pull tested to 2x the vertical rating and officially recorded as proof for governing bodies. During the standard manufacturing process, only random slings during a production run are tested for compliance; in order to provide proof testing certificates with your order, every sling must be pull tested at the time of manufacture.
All of our wire rope lifting slings are inspected, certified and tagged with metal tags displaying capacity, care, and instructions.
PRODUCTION
STORAGE
TRANSPORTATION
In ordering a wire rope sling be sure to give complete information including length,diameter,construction,lay,core.
Length:state the exact length desired.In ordering end fittings such as thimbles,links or hooks spliced in,give exact length from bearing to bearing or end rope,or submit a sketch with dimensions.
Diameter:the true diameter of a wire rope is the diameter of a circle which will enclose it.In using the caliper to determine the diameter,be careful to avoid measuring across the adjacent strands.
Construction:advice whether 6X19,6X37,7X19 or other.
Lay:state definitely whether regular(right hanad or left hand).or lang lay(right hanad or left hand)is required;if it is uncertain,consult with us.Standard practice is to furnish Right Hand Regular(ordinary)Lay.But if left hand Regular(ordinary)Lay is required for cable tool drilling or some other purpose,be sure to state.
Core:indicate whether fiber core(FC)or independent wire rope core is desired.
