Información Básica.
No. de Modelo.
mini electric chain hoist
Máxima Altura de elevación
12m
Cadena Falls
1
Certificación
CE
Condición
Nueva
Color
Amarillo
nombre del producto
mini polipasto de cadena eléctrico
capacidad de elevación
300kg 500kg 1000kg 2000kg
velocidad de elevación
12m/min 6m/min 3m/min 5,4m/min 2,7m/min
material de la cadena
acero aleado
load pated
300kg
motor
1400w
oem/odm
aceptado
cadena
6.3mm/3m,6.3mm/3m*2.7.1mm/3m,7.1mm/3m*2
plazo de entrega
3-5 días hábiles después de la recepción del pago
peso (kg)
30
uso
grúa de construcción
fuente de alimentación
eléctrico
método de control
control colgante o control remoto
servicio después de la garantía
asistencia en línea
fase
monofásica
Paquete de Transporte
50cm*30cm*40cm
Especificación
50CM*30CM*40CM
Marca Comercial
RAYVANBO
Origen
China
Código del HS
84251100
Capacidad de Producción
5000 Pieces/Month
Descripción de Producto

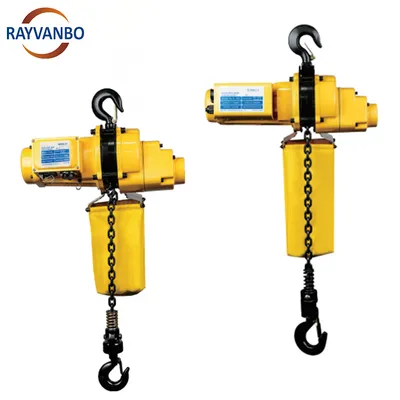

Product Features:
1.The motor system adopts an industrial grade wound carbon brush motor. The heat resistance of the enameled wire in the motor is up to 200°C, . and it can continuously provide good durability under high temperature conditions when lifting.
2.Dual braking system: unique mechanical braking and short-circuit resistance braking system.
3.Direct and indirect control systems are streamlined, efficient, and have a low failure rate. They are safe, stable, and easy to maintain.
4.The chain is made of 80 grade alloy steel, with a safety factor of 4 times.
2.Dual braking system: unique mechanical braking and short-circuit resistance braking system.
3.Direct and indirect control systems are streamlined, efficient, and have a low failure rate. They are safe, stable, and easy to maintain.
4.The chain is made of 80 grade alloy steel, with a safety factor of 4 times.
| Model | Load Pated | Voltage | Speed | Motor | Chain |
| BCD-300 | 300kg | 220V~240V 50~60Hz | 12M/min | 1400W | 6.3mm/3M |
| 300kg | 110V 50~60Hz | 12M/min | 1400W | 6.3mm/3M | |
| BCD-500 | 500kg | 220V~240V 50~60Hz | 6M/min | 1500W | 6.3mm/3M |
| 500kg | 110V 50~60Hz | 6M/min | 1500W | 6.3mm/3M | |
| BCD-1000D | 1000kg | 220V~240V 50~60Hz | 3M/min | 1500W | 6.3mm/3M*2 |
| 1000kg | 110V 50~60Hz | 3M/min | 1500W | 6.3mm/3M*2 | |
| BCD-1000S | 1000kg | 220V~240V 50~60Hz | 5.4M/min | 2500W | 7.1mm/3M |
| 1000kg | 110V 50~60Hz | 5.4M/min | 2500W | 7.1mm/3M | |
| BCD-2000 | 2000kg | 220V~240V 50~60Hz | 2.7/min | 2500W | 7.1mm/3M*2 |
| 2000kg | 110V 50~60Hz | 2.7M/min | 2500W | 7.1mm/3M*2 |
